Recharging through an Injection Borewell

Recommended for

Areas having slope up to 5%.

Areas where big roofs are not available.

Annual rainfall up to 800 mm. With a daily limit up to 50 mm.

Drilling of new single Injection borewell with assured yield > 2820 lits/hour indicating presence of productive shallow/ deep aquifer/s.


Drill a borewell of at least 6” diameter within the premises at geohydrologically appropriate location. This borewell should yield at least 2500 lits/hour, then only it will accept the filtered rooftop water and recharge the aquifer. Usually, this borewell is not used for pumping purposes. Hence, it is treated as a Recharge Shaft.

Preferably use perforated (slit type) M.S. casing pipe of at least 6 meters depth for the borewell during drilling. After drilling grout only lower the 2 m part of the casing using cement slurry. Wrap silicon mesh of < 70 micron in upper 4 m part of the casing. Cover the borewell with the cap.

From the stormwater drainage line channelize the stormwater, generated within the project area through a 4” diameter flexible HDPE pipe. Join this drainpipe to the inlet pipe. If required, construct a small chamber of 0.5 m x 0.5 m x 0.5 m dimension for installation of a two-way valve.

Install a two-way ball bearing valve to the drainpipe, where it connects the inlet pipe of the filter media. Close this valve during the first spell of stormwater and allow the muddy, contaminated runoff water to go into the drain chamber. Also close this valve during the high intensity rainfall spells.

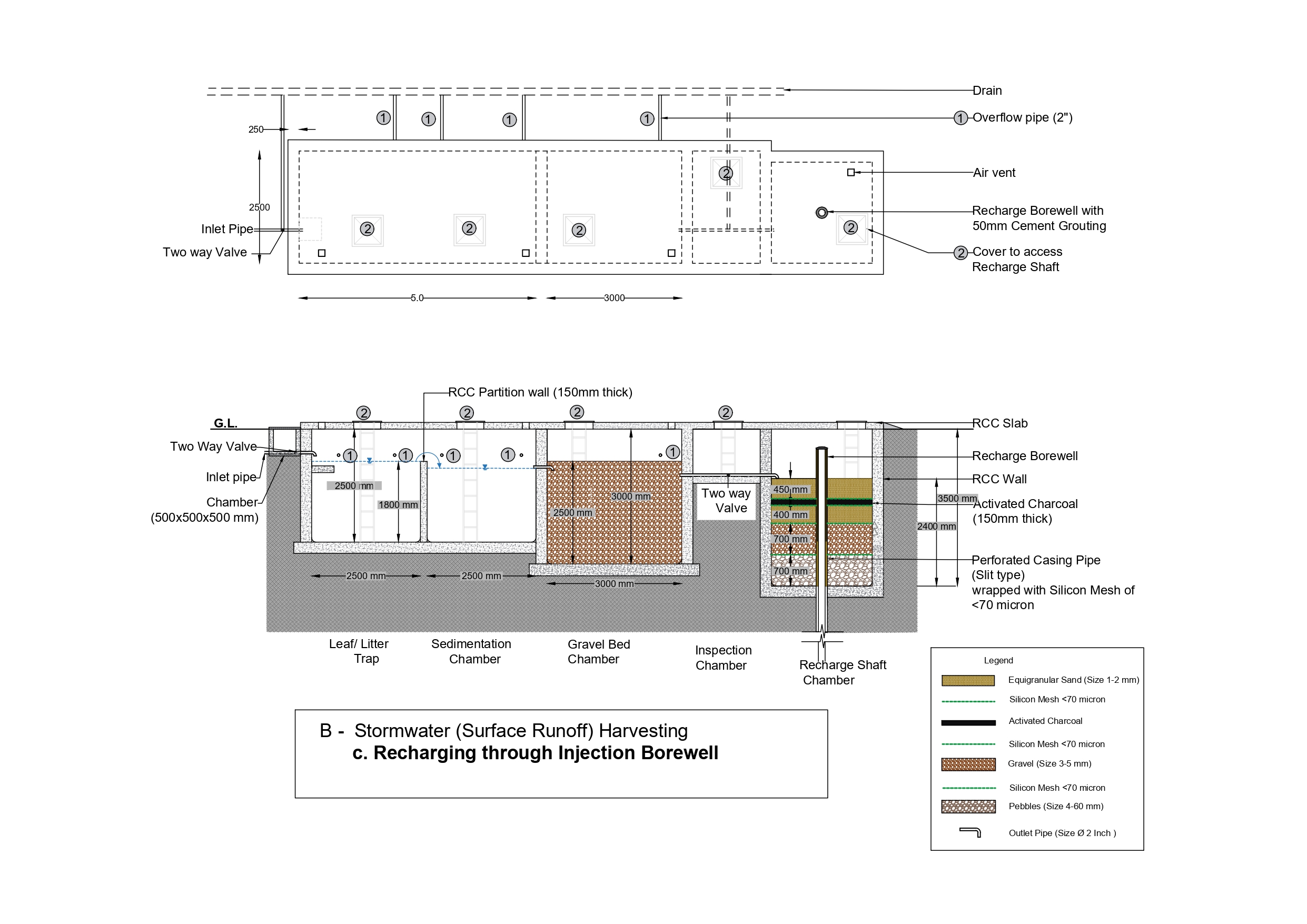

Using RCC slab, construct a settling tank (first) of 5 m x 2.5 m x 2.5 m (L x W x D) size with two chambers, one for leaf/litter trap & the other for sedimentation. For making two chambers construct a RCC partition wall of 150 mm thick as shown in the drawing

In continuation with this, construct a second tank of 3 m x 2.5 m x 3 m size for the gravel bed to arrest primary silt. Fill it completely with a gravel layer of 2.5 m thickness.

In continuation with this construct an inspection chamber of 1m x 1m x 1m size to lay down the outlet pipe 2 for carrying the filtered stormwater from the gravel bed. Install a two-way valve in it.

In line with the earlier tanks construct a third tank of 2.5 m x 2.5 m x 3.5 m size as a filtration chamber to accommodate the Recharge Shaft. Hence, take due precautions so that the borewell is not damaged during construction of the chamber. Please refer to the drawing for further detail.

In the filtration chamber create a filter bed composed of Sand, Activated Charcoal, Gravel, Pebbles. This filter material is readily available in the market.

Initially lay a 700 mm layer of pebbles at the bottom of the filter. Cover it with silicon mesh of < 70 micron from the top. Over this silicon mesh place a 700 mm thick uniform size layer of sand. This is also separated by a silicon mesh of the same size. Add a sand layer of 400 mm thickness & followed by an activated charcoal layer of 150 mm thickness. This is followed by silicon mesh again and a sand layer of 450 mm thickness. For more details, refer to the drawings.

For carrying the water from one chamber to other and lastly to borewell lay down 2” dia PVC pipes by making holes in the tank walls as shown in the drawing.

In the inspection chamber join the last PVC pipe of 2” diameter with the borewell casing pipe by making an appropriate size hole into it. Put a two-way valve in the middle. This valve is to be connected to the drain chamber. When the borewell starts overflowing this valve is to be closed and allow the stormwater to get drained into the drain chamber.

In the settling chamber provide two overflow pipes to drain out the excess water collected in it. This is required for high intensity rainfall spells. This helps to maintain the appropriate hydrostatic pressure within the settling chamber and passes the water into the filtration chamber.

These tanks are to be constructed below the ground. Hence it is necessary to cover the tank with a RCC slab. Provide manholes within the slab as shown in the drawing.

Provide proper air vents to all the chambers as shown in the plan view of the drawing. Also provide overflow pipes in sedimentation, settling chambers as shown in the drawing.


The channelised stormwater will come through the inlet pipe into the leaf/ litter trap chamber. This water is allowed to fall over a small slab (8” long and 2” thick) to avoid the erosion of the tank walls. This slab will also help in reducing the velocity of the inflow water. Soon after the water level in the chamber reaches the top of the partition wall, it will start flowing into the sedimentation chamber.

When it enters the sedimentation chamber, slowly the stormwater becomes stagnant. This helps in settling the heavy silt load present in the sedimentation chamber itself.

From this chamber the stormwater enters the gravel bed. There most of the silt, suspended material etc will get collected into the pores present in it. Soon after its saturation the water will start flowing into the settling chamber. Here 100% stormwater will not get cleaned.

When the water enters the settling chamber, it will start getting collected into it. After settling the water enters the filtration chamber from the top.

In the filtration chamber the water spreads over the pebble layer and because of high porosity it will go down naturally. During this movement the heavier clay and silt particles present in the water will start depositing into the pore spaces present in the gravel & sand layers. After entering the pebble layer, the water will settle down and remaining dust, clay and silt particles will get deposited at the bottom of the filter. Only clean water will come up.

The activated charcoal helps in adsorption of the chemical and bacterial contaminants present in the water. Hence, it is the most important and non-negotiable constituent of the artificial filter bed.

The clean water will slowly fill the pebble layer. Then it will start flowing through the PVC pipe joined with the borewell. The velocity of this water will be very less. Hence the aquifer/s present within the borewell will accept continuously.


During the first storm close the inlet pipe two-way valve and allow the runoff water to directly go to the drainage line. This will help in avoiding the heavy contaminant load entering the filter chambers.

During high intensity rainfall spells (>25 mm/hour) open the inlet pipe two-way valve, so that maximum runoff water will drain directly into the drain chamber.

When inflow of water increases in the sedimentation & settling chambers and outflow from the gravel bed chamber and filtration chamber decreases, excess water collected in those chambers will automatically get drained out through two overflow pipes given in both the chambers.

If the borewell starts overflowing, then immediately close the outflow valve and drain the excess water into the drain chamber. At the time of cleaning the filter keep the outflow valve closed. This will help protect the borewell from siltation, contamination, or damage.


Every year Immediately after the monsoon take out the stagnant water present in the leaf/ litter trap, sedimentation and settling chambers. Also take out the silt/clay settled at the bottom of these chambers. For cleaning purposes use the manhole given in all the chambers.

Every year during March-April take out the upper layer of pebble, gravel & sand layers. Wash them thoroughly. After due drying, top up all these layers again.

Every year replace the activated charcoal layer.

The society/management of the building should train their personnel for the annual maintenance of the filter and make appropriate provision of funds.

Every year check the water quality parameters (chemical and bacteriological) of the borewell water at least during pre- and post-monsoon seasons.
